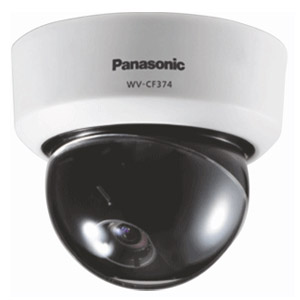

Day/Night Fixed Dome Camera

WV-CF300 Series

WV-CF344 (24 V AC or 12 V DC)

WV-CF354 (24 V AC or 12 V DC)

WV-CF374 (24 V AC or 12 V DC)

Smart look Day/Night Fixed Dome Camera with advanced features

Key Features

• High resolution: 650 TV lines

• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx

(B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity

in B/W mode. (WV-CW374)

• High sensitivity with Day/Night (electrical) function: 0.08 lx (Color),

0.05 lx (B/W) at F1.4 (WV-CW344/WV-CW354)

• ABS (Adaptive Black Stretch) enhances visibility of dark area

without degrading image quality in bright area.

• ABF (Auto Back Focus) ensures easy installation (WV-CF354).

• Focus Assist ensures easy installation.(WV-CF344/WV-CF374)

• Various adjustment features including BLC (Back-Light Compensation),

ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)

• 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens

• 16 axis matrix color compensation function enables wider range of

natural color adjustment.

• Adaptive Digital Noise Reduction: Integration of 2D-DNR and

3D-DNR ensures noise reduction in various conditions.

• Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 512x)

• Electronic shutter from 1/120 to 1/10,000 sec.

• Digital zoom: Up to 2x

• Auto Image Stabilizer for applications where vibration or wind is a concern

• Internal synchronization

• Over the coaxial cable data communication

• 16 alphanumerics camera title display

• Multi language: English, French, Italian, Spanish, German, Russian, Japanese

• Wide coverage :

 WV-CF344 Horizontal: 100.3 °, Vertical: 73.5 °

 WV-CF354 Horizontal: 100.3 °, Vertical: 73.4 °

 WV-CF374 Horizontal: 100.8 °, Vertical: 73.8 °

• Lens Distortion Compensation

• On screen display menu

• Monitor output and ELC mode for easier lens adjustment upon installation

• 3-way hinge (horizontal, vertical and swivel rotation) for easy installation

• Various mounting options: Surface mount, Embedded mount (with

optional WV-Q174)

• Smart look fits for various applications such as shopping mall,

hotels and hospitals.
