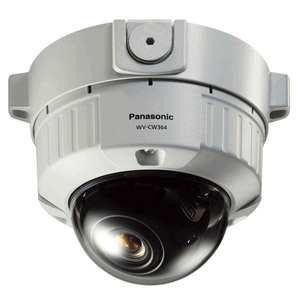

Vandal Resistant Fixed Dome Camera

WV-CW334/CW364

WV-CW334S (24 V AC or 12 V DC)

WV-CW364S (24 V AC or 12 V DC)

WV-CW334S (24 V AC or 12 V DC)

WV-CW364S (24 V AC or 12 V DC)

Vandal Resistant IP66 Day/Night Fixed Dome Camera with 1/3 type CCD

• High resolution: 540 TV lines

• High sensitivity with True Day/Night function (WV-CW364)

 : 0.6 lx (Color)

 : 0.05 lx (B/W)

• High sensitivity with Simple Day/Night function (WV-CW334)

 : 0.6 lx (Color)

 : 0.4 lx (B/W)

• ABS (Adaptive Black Stretch) enhances visibility of dark area

without degrading image quality in bright area.

• Vandal resistant mechanism for high reliability

• IP66 rated water and dust resistant. Compatible with IEC60529

measurement standard.

• Various adjustment features including BLC (Back Light Compensation),

ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)

• 2 White Balance modes are selectable with Dip Switch:

 ATW (Auto Tracking White Balance) / AWC (Automatic White Balance Control)

• 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens

• Internal/Multiplexed Vertical Drive (VD2) synchronization

• Monitor output for easier lens adjustment upon installation

• 3-way hinge (horizontal, vertical and swivel rotation) for easy installation

• Various mounting options: Flush mount, Surface mount and

Embedded ceiling mount

• Optional heater maintains operating temperature –30 °C ~ +50 °C

 (–22 °F ~ 122 °F)
