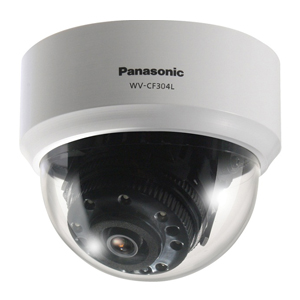

IR LED Day/Night Fixed Dome Camera
WV-CF300L Series
WV-CF314L (24 V AC or 12 V DC)
WV-CF304L (24 V AC or 12 V DC)
Day/Night Fixed Dome Camera with IR LED and advanced features
Key Features
• High resolution: 650 TV lines
• High sensitivity with Day/Night function: 0.08 lx (Color), 0 lx (B/W,
LED on) at F1.3. IR cut filter switches on/off to enhance the
sensitivity in B/W mode. (WV-CF314L)
• High sensitivity with Day/Night function: 0.15 lx (Color), 0 lx(B/W,
LED on) at F2.0. IR cut filter switches on/off to enhance the
sensitivity in B/W mode. (WV-CF304L)
• IR LED equipped: The equipped infrared LED makes it possible to
take pictures at 0 (zero) lx.
IR LED irradiation distance 20 m (WV-CF314L)
IR LED irradiation distance 10 m (WV-CF304L)
• LED AUTO mode : Control to the best brightness level
automatically when the IR LED is ON.
• ABS (Adaptive Black Stretch) enhances visibility of dark area
without degrading image quality in bright area.
• ABF (Auto Back Focus) ensures easy installation (WV-CF314L).
• Various adjustment features including BLC (Back-Light Compensation),
ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
• 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens (WV-CF314L)
• 2.8 mm Fixed Iris lens (WV-CF304L)
• 16 axis matrix color compensation function enables wider range of
natural color adjustment.
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and
3D-DNR ensures noise reduction in various conditions.
• Electronic sensitivity enhancement: Auto (Up to 32x) / Fix (Up to
512x) (WV-CF314L)
• Electronic sensitivity enhancement: Auto (Up to 32x) (WV-CF304L)
• Electronic shutter from 1/120 to 1/120,000 sec.(WV-CF314L)
• Digital zoom: Up to 2x
• Auto Image Stabilizer for applications where vibration or wind is a concern
• Internal synchronization
• Over the coaxial cable data communication
• 16 alphanumerics camera title display
• Multi language: English, French, Italian, Spanish, German, Russian,
Chinese, Japanese
• Lens Distortion Correction
• On screen display menu
• ELC mode for easier lens adjustment upon installation
