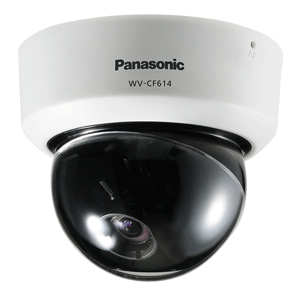

Day/Night Fixed Dome Camera

WV-CF600 Series

WV-CF614 (24V AC or 12 V DC)

WV-CF634 (24V AC or 12 V DC)

Smart look Day/Night Fixed Dome Camera featuring Super Dynamic 6 technology

Key Features

• Super Dynamic 6 technology delivers 160x wider dynamic range

compared to conventional cameras.

• High resolution: 650 TV lines

• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W)

at F1.4. IR cut filter switches on/off to enhance the sensitivity in B/W

mode. (WV-CF634)

• High sensitivity with Day/Night (electrical) function: 0.08 lx (Color),

 0.05 lx (B/W) at F1.4 (WV-CF614)

• ABS (Adaptive Black Stretch) enhances visibility of dark area without

degrading image quality in bright area.

• ABF (Auto Back Focus) ensures easy installation.

• Various adjustment features including ATW (Auto Tracing White

Balance) and ALC (Automatic Light Control)

• 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens

• 3-dimensional color conversion function for natural color

reproduction even in lower color temperature situation

• Adaptive Digital Noise Reduction: Integration of 2D-DNR and

3D-DNR ensures noise reduction in various conditions.

• Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 512x)

• Electronic shutter from 1/120 to 1/120,000 sec.

• Digital zoom: Up to 2x

• Auto Image Stabilizer for applications where vibration or wind is a

concern

• Internal synchronization

• Over the coaxial cable data communication

• 16 alphanumerics camera title display

Multi language: English, French, Italian, Spanish, German, Russian,

Chinese, Japanese

• Wide coverage :

 WV-CF634 Horizontal: 100.8 °, Vertical: 73.8 °

 WV-CF614 Horizontal: 100.3 °, Vertical: 73.4 °

• Lens Distortion Compensation

• On screen display menu

• Monitor output and ELC mode for easier lens adjustment upon installation

• 3-way hinge (horizontal, vertical and swivel rotation) for easy installation

• Various mounting options: Surface mount, Embedded mount (with

optional WV-Q174), Mounting to a junction box (locally obtained)

• Smart look fits for various applications such as shopping mall,



hotels and hospitals.
