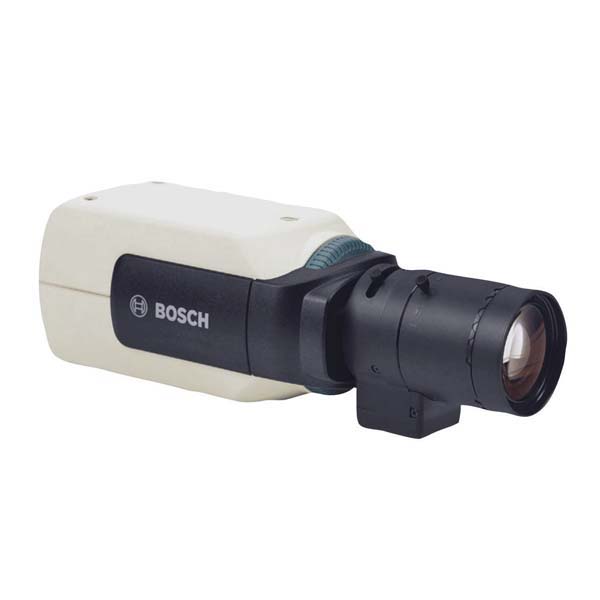

Box Analog Camera BOSCH รุ่น VBN-4075-C11

รหัสสินค้า :   001754
ลักษณะสินค้า :   กล้องทรงกระบอกมาตรฐานความละเอียดสูง 650TVL True Day/Night
การรับประกัน :   2 ปี
ราคา :   N/A

ราคารวมภาษี 0.00 บาท

หมายเหตุ: ขายส่งต่างจังหวัด ขายติดตั้งในกรุงเทพฯ ปริมณฑล
Social Share:





รายละเอียดสินค้า

650TVL 960H Box Camera, TrueD/N, DWDR, DNR, LV (No Lens, CS mount)

arrowImage Sensor 1/3" CCD, 960H
arrowHorizontal resolution 720 TVL
arrowMinimum Illumination Color: 0.05 lux B/W: 0.01 lux (true D/N version), F1.2, 30IRE)
arrowLens type Manual, DC Iris DC Iris drive
arrowSignal-to-Noise Ratio 52 dB
arrowDimensions 58 x 66 x 122 mm.
arrowSupply Voltage 12 VDC / 24 VAC
arrowPower Consumption 3.6 W max. / 0.3 A




DINION 4000 cameras are compact analog camerasthat offer excellent resolution in variable lightingconditions, day or night. The high performance 960H1/3‑inch CCD sensor provides a resolution of 720TVL.The cameras are an ideal solution for demandingscene conditions. The backlight compensation andhighlight compensation features optimize the imagevisibility in high-contrast areas, automaticallycompensating for bright backgrounds and strong lightsources.The cameras are easy to install and parameters can beset individually. Privacy zones and motion detectionfunctions can be set up in the handy camera menusystem.The true day/night version automatically switches fromcolor to monochrome using a mechanical IR filterdepending on the available light.

VBN-4075-C11 | Technical Specifications

Image Sensor 960H, 1/3" CCD, sensor resolution 720TVL
System PAL or NTSC
Total pixels (H x V) 1020 x 596 (PAL)1020 x 508 (NTSC)
Effective pixels (H x V) 976 x 582 (PAL)976 x 494 (NTSC)
Video Output Composite: 1 Vpp, 75 Ohm
Sync. System Internal sync., Line-lock
S/N Ratio (sharpness, AGC off) 52 dB min.
Minimum Illumination (F1.2, 50IRE) Color: 0.1 lx B/W: 0.02 lx (true D/N version)
Minimum Illumination (F1.2, 30IRE) Color: 0.05 lx B/W: 0.01 lx (true D/N version)
Manual shutter 1/50 – 1/10,000 (PAL)1/60 – 1/10,000 (NTSC)
Digital Noise reduction 2DNR
White Balance ATW, Push, User1, User2, Anti CR, Manual, Push lock
Light compensation OFF/BLC/HLC
Digital Dynamic Engine On, Off
AGC On, Off
Day/Night Auto, Color, B/W
Burst On, Off
Motion detection 4 programmable zones
Privacy 8 programmable zones (4 zones when motion detection is on)
Mirror On (horizontal), Off
Sharpness 0 ‑ 255
Alarm input (true D/N version only) Night mode active profile switching, 3.3 V nominal, +40 VDC max.
Alarm output(true D/N version only) Night mode active, 30 VAC or +40 VDC, max. 0.5 A continuous, 10 VA
OSD language English, Japanese, German, French, Russian, Portuguese, Spanish, Simplified Chinese
Lens type Manual, DC IrisDC Iris drive: 50 mA max.
Lens mount CS (max. lens protrusion 5 mm [0.2 in])C-mount compatible with optional adapter ring
Tripod mount Bottom (isolated) and top 1/4-inch 20 UNC
Supply Voltage(VBx-4075-C11, VBx-4075-C21) 12 VDC / 24 VAC
Supply Voltage(VBx-4075-C51) 230 VAC
Power Consumption (true D/N version) 3.6 W max. / 0.3 A
Power Consumption (electronic D/N version) 2.4 W max. / 0.2 A
Dimensions (without lens) 58 x 66 x 122 mm2.28 x 2.6 x 4.8 in
Weight (12 VDC/24 VAC) 500 g (1.10 lbs) without lens
Weight (230 VAC) 600 g (1.32 lbs) without lens
Operating Temperature -20 °C to +55 °C (-4 ºF to +131 ºF)
Operating Humidity 20% to 90% RH
Storage Temperature -40 °C to +70 °C (-40 ºF to +158 ºF)
Storage Humidity up to 98% RH
