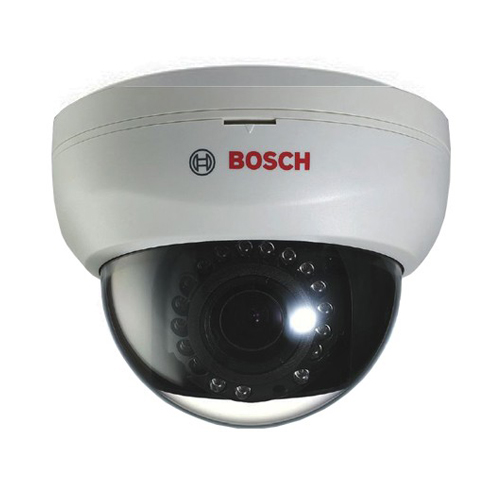

Analog IR Dome BOSCH รุ่น VDI-260V03-10

รหัสสินค้า :   001764
ลักษณะสินค้า :   Dome Infared Camera Lens Varifocal 3.8mm to 9.5mm 570TVL IR 15M.
การรับประกัน :   2 ปี
ราคา :   N/A

ราคารวมภาษี 0.00 บาท

หมายเหตุ: ขายส่งต่างจังหวัด ขายติดตั้งในกรุงเทพฯ ปริมณฑล
Social Share:





รายละเอียดสินค้า

570TVL(Sensor) Dome Camera - Varifocal 3.8-9.5mm., IR15m., 3-axis (Indoor)

arrowImage Sensor 1/3-inch High sensitivity CCD
arrowHorizontal resolution 570 TVL
arrowMinimum Illumination 0.05lux (color) 0.005lux (B/W), 0.00 lx (IR on)F2.0 / 30IRE
arrowLens type DC Iris Varifocal Lens 3.8-9.5 mm
arrowSignal-to-Noise Ratio 50 dB
arrowIR illumination 18 IR LEDs (850 nm, 45˚)
arrowIR range 15 m
arrowDimensions 123(Ø) x 95(H)mm.
arrowSupply Voltage 12 VDC (±10%)
arrowPower Consumption 4.8 W max. / 0.4 A


The VDI-230 and VDI-260 cameras are compact,stylish surveillance domes with integrated IR illu-mination, offering excellent resolution in variablelighting conditions. The high performance 1/3‑inchCCD camera is available with a 3.8 mm fixed lens,or a 3.8 to 9.5 mm varifocal lens with integratedday/night filter.The camera is easy to install and can be adjustedaround 3 axes. Privacy zones and motion detectionfunctions can be set up in the handy camera menusystem.

 VDI-260V03-10 | Technical Specifications

System PAL
Effective pixels (H x V) 752 x 582 (PAL)
Image Sensor 1/3-inch High sensitivity CCD
Video Output Composite: 1 Vpp, 75 Ohm
Sync. System Internal sync., Line-lock
S/N Ratio(sharpness, AGC off) >50 dB min.
Horizontal resolution 570 TVL sensor resolution
Minimum Illumination (F2.0, 30IRE, AGC max.) 0.05 lx (color) 0.005 lx (B/W)0.00 lx (IR LED on)
ESC 1/50 – 1/120,000
Manual Shutter 1/50(60), 1/100(120), 1/250, 1/500, 1/700, 1/1k, 1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K,1/30K, 1/60K, 1/120K
DNR Off, Low, Middle, High
White Balance ATW, Manual, Push
SBLC Off, Low, Middle, High
AGC On, Off
Day/Night Auto, Color, B/W, Ext.
Burst On, Off
Motion detection On, Off (4 programmable zones)
Privacy On, Off (4 programmable zones)
Mirror On (horizontal), Off
Sharpness 1 ‑ 20
Gamma 0.35, 0.45, 0.6, 0.75
OSD language English, Chinese
Lens type (VDI-230) Fixed Lens (f = 3.8 mm)
Lens type (VDI-260) DC Iris Varifocal Lens (f = 3.8 to 9.5 mm)
IR illumination (VDI-230) 28 IR LEDs (850 nm, 45˚)
IR illumination (VDI-260) 18 IR LEDs (850 nm, 45˚)
IR range 15 m
Supply Voltage 12 VDC (±10%)
Power Consumption 4.8 W max. / 0.4 A
Operating Temperature -10 °C to +50 °C (14 ºF to +122 ºF)
Operating Humidity 30% to 80% RH
Storage Temperature -20 °C to +60 °C (-4 ºF to +140 ºF)
Storage Humidity 20% to 90% RH
